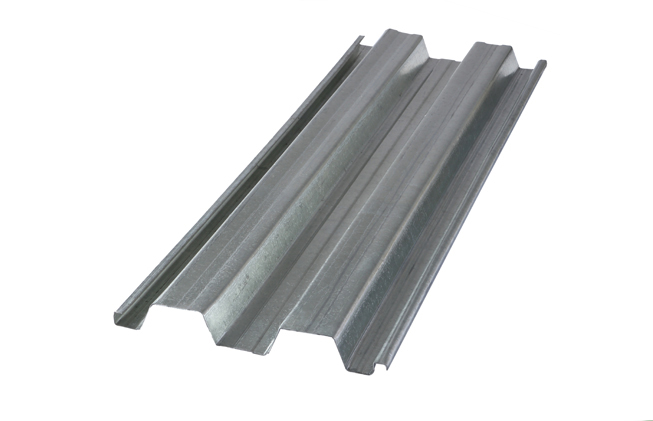

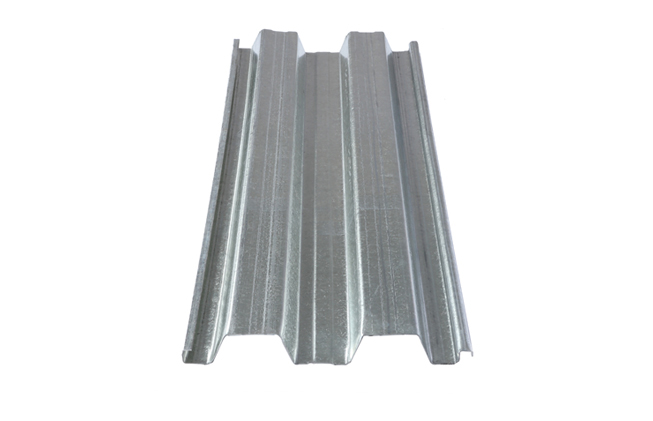

V-deck

9,999.00

Light yet sturdy reinforcement for your construction projects. Union Galvasteel Corporation offers V-deck for residential, commercial, and industrial buildings in the Philippines. Contact our roofing and construction materials professionals for galvanized steel decking price and details.​

Features & Benefits:
– Rib design provides superior tensile reinforcement and provides better concrete interlock
– Designed to act positive reinforcement and bonds with concrete as a composite flooring
material, and can consume less concrete and shoring support thus saves on construction
material, basically less concrete requirement
– Steeldeck underside design is aesthetically pleasing; you have the option to retain the
underside as is, which saves on costly materials that can escalate your interior design budget.

Application / Uses:
– Ideal for multi-storey commercial buildings and houses, elevated highways, bridges, overpass
and high rise condominiums.

Description

Substrate/
Reference Standards
Continuous Hot-dip Zinc-Coated Galvanized Steel

PNS 1990:2004; JIS G 3302; ASTM A 924/653; ISO 3575

Nominal Thickness
0.80, 1.00, 1.20, 1.40 and 1.80 mm
Feed Width
610 mm
Effective Coverage 400 mm
Steel Grade Structural Quality, Yield Strength: 275 – 550 MPa (40,000 – 80,000 psi)
Also Available: Commercial Quality, CQ 160 MPa
Zinc Coating Z80
Length Any transportable length
Applications Decking for residential, commercial and industrial buildings
